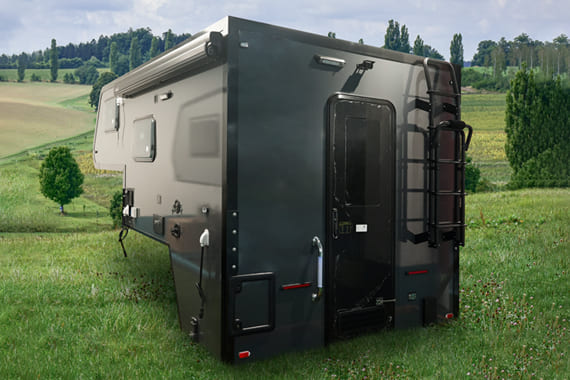

Cabover Camper-172

Self-contained systems enable independent operation in any remote location.
Its intuitive setup and adaptive design allow versatile, multi-purpose use.
Enhanced security and automated safety features protect both people and gear.
Download Brochure

Get A Quote

Overview
Floor Plan
Gallery
Video

Cabover Camper-172 Information

Length
4095mm
Width
2156mm
Height
2490mm
Tare Mass
800KG
Berth
4 person

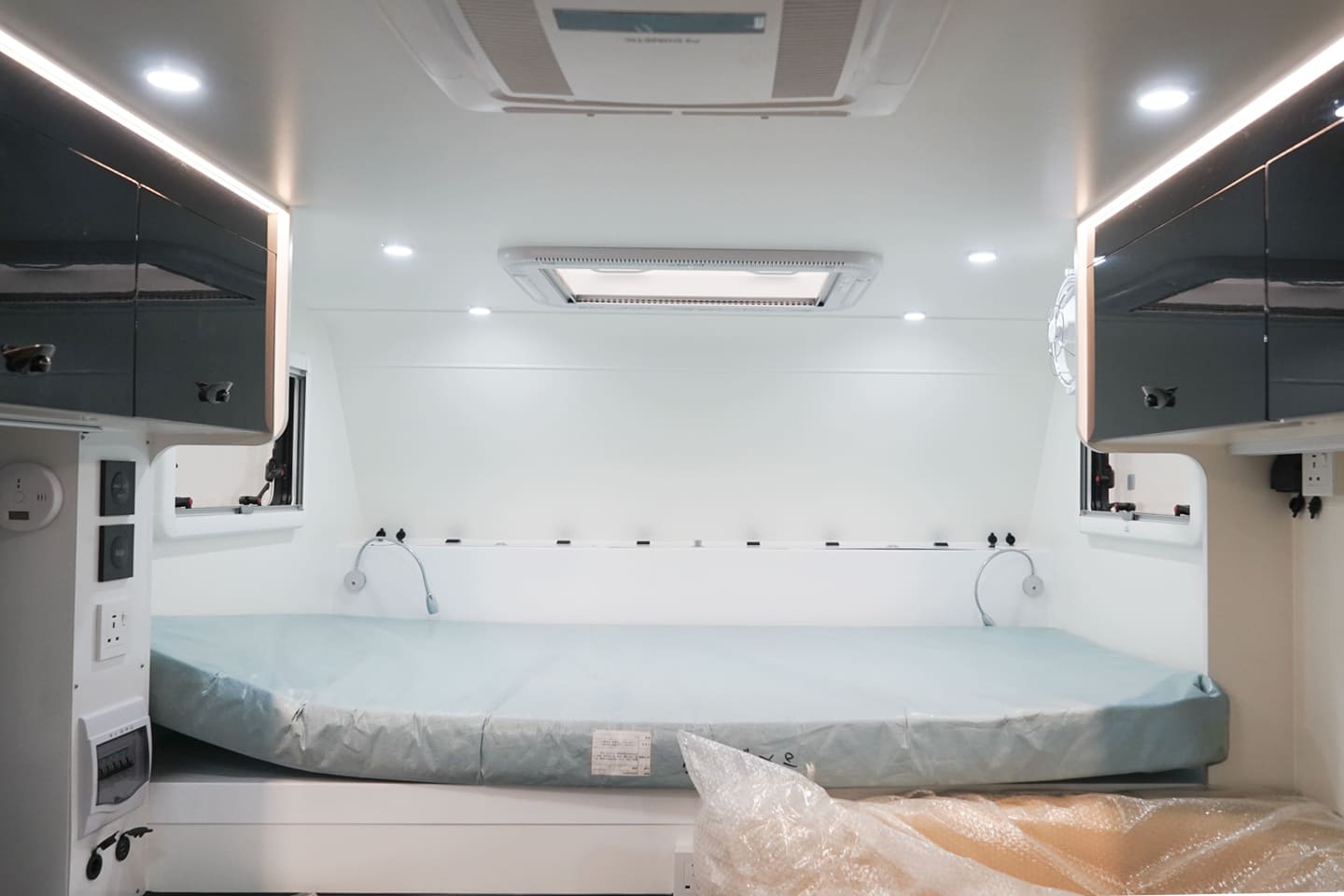

Interior

Interior dimensions: 4000(L)*2084(W)*2002(H) mm
Floor structure: Honeycomb floor
Bed: 1 (1330 * 2080mm)
Rotatable dining table

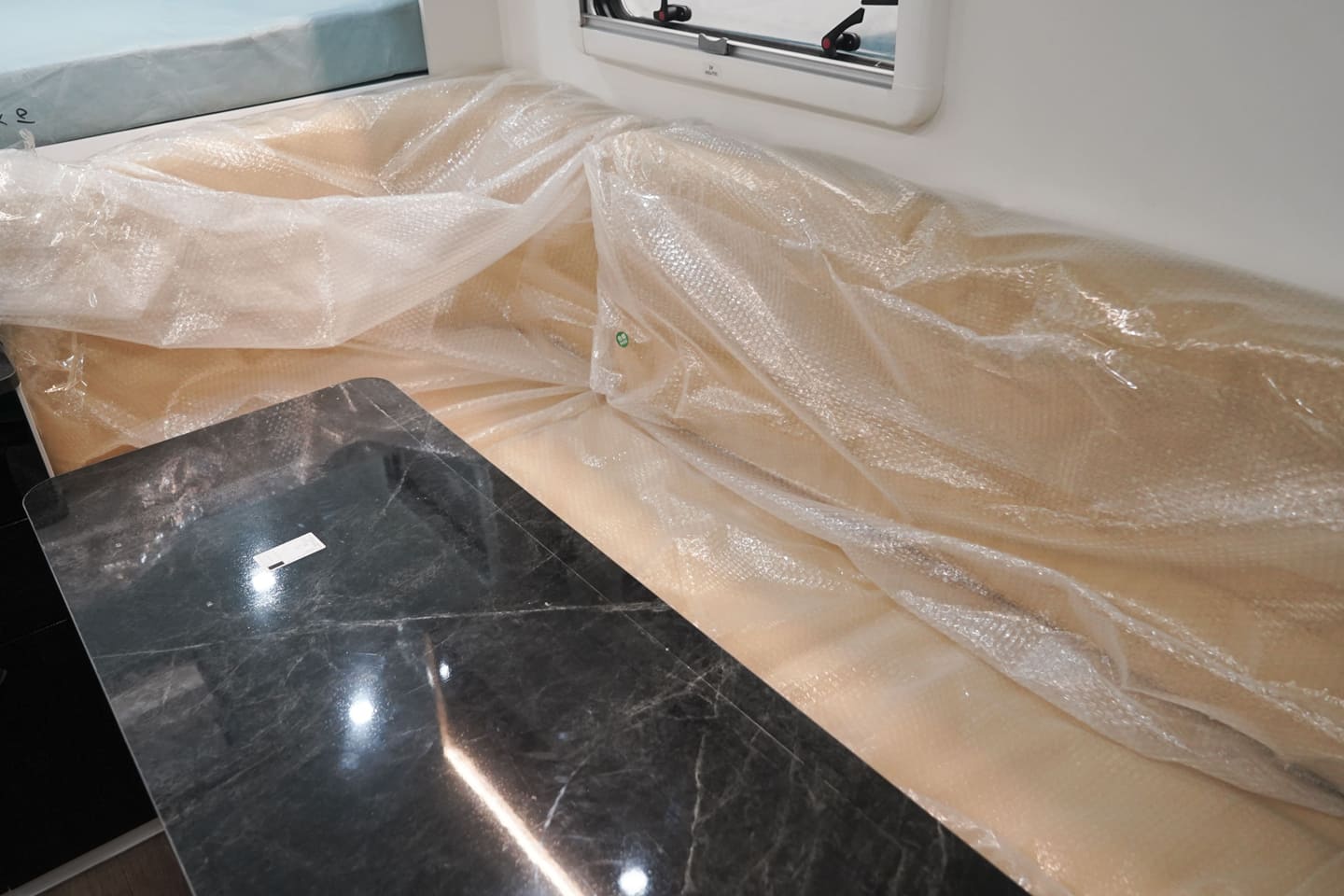

L-shaped sofa (4-seater)
Bathroom mirror
LED interior lighting
12V electric jacks*4
Foldable ladder
Fire extinguisher: 1

Exterior

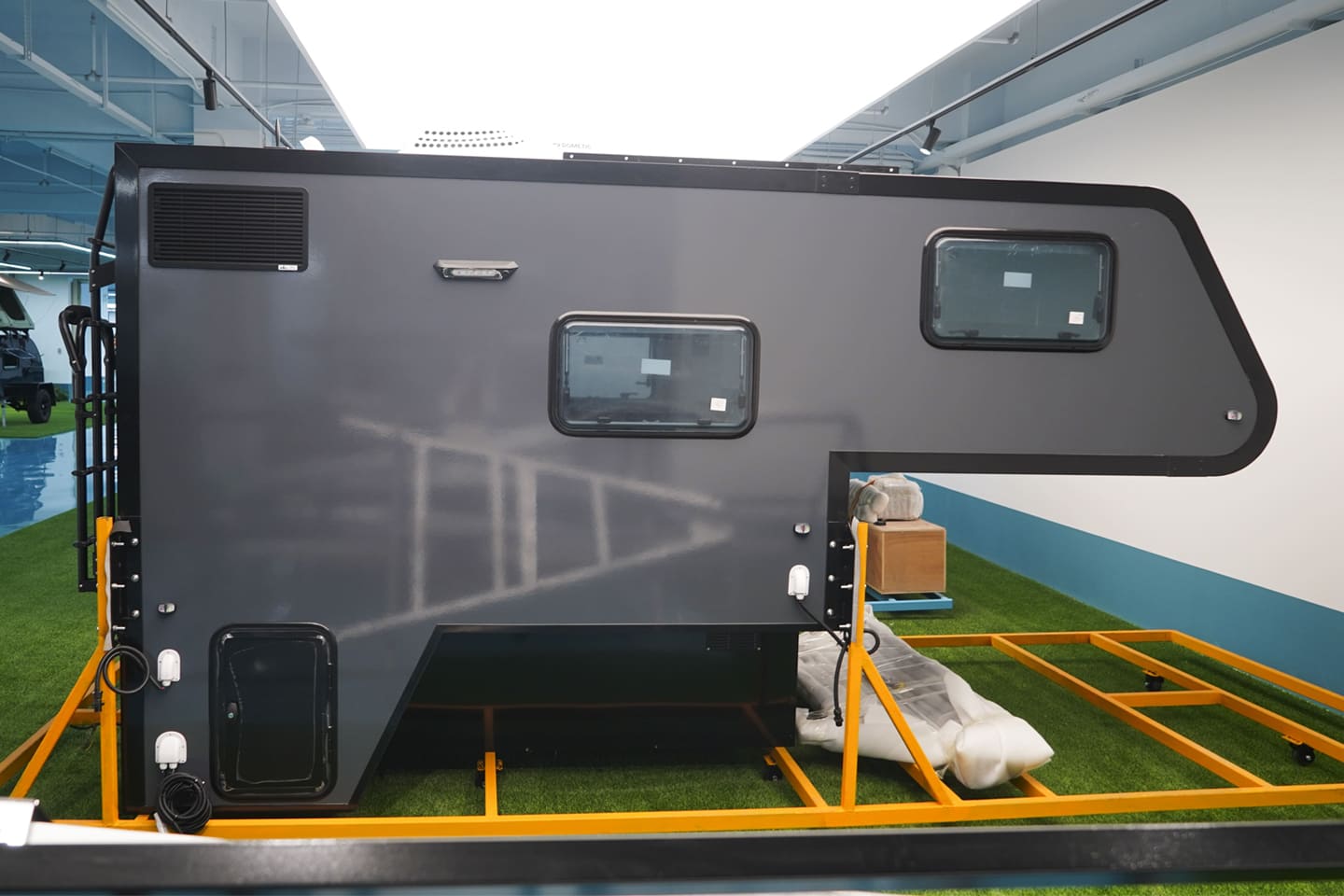

Body dimensions: 4095(L)*2156(W)*2490(H) mm
Gas cylinder bracket*1 (excludes gas bottle & regulator)
Full copper gas piping system
Front vehicle connector: 7-pin European round plug
50A European plug (confirm voltage/style)
Tail lights: 2 turn signals, 4 brake lights, 2 reverse lights, 2 running lights, 2 marker lights (E4 certified)
License plate light: 1 (E4 certified)
Side marker lights: 6 (E4 certified)
Reflective panels
Exterior 240V socket (European standard)
Solar panels: 12V, 100W*2
LED lights on right exterior (2 units)

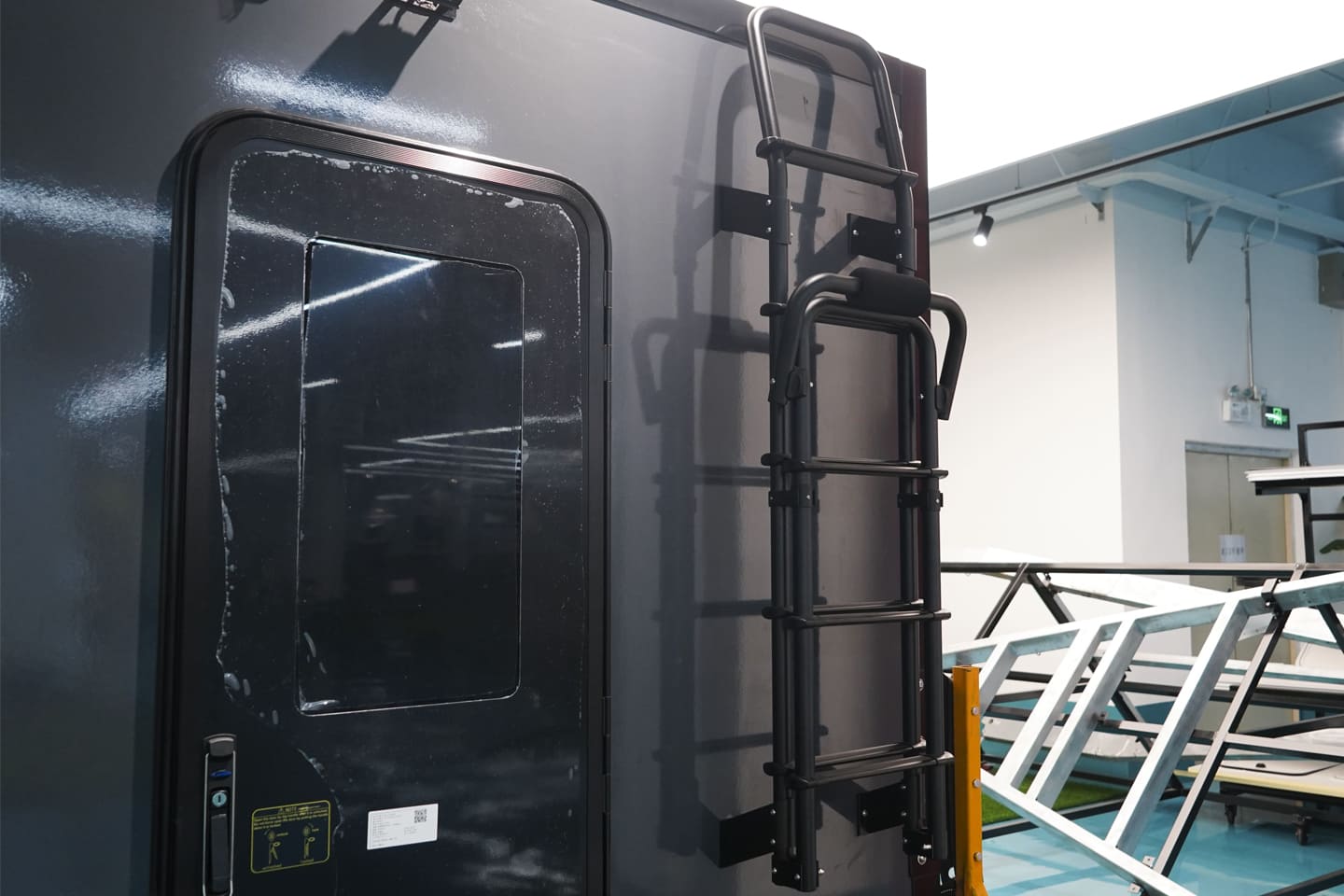

Rear ladder (for roof access)
Brake light protectors

Plumbing

Fresh water tank: 100L
Gray water tank: 54L
Water heater: Truma 14L electric/gas combo
Water pump: 12V pump, flow rate 11.3LPM

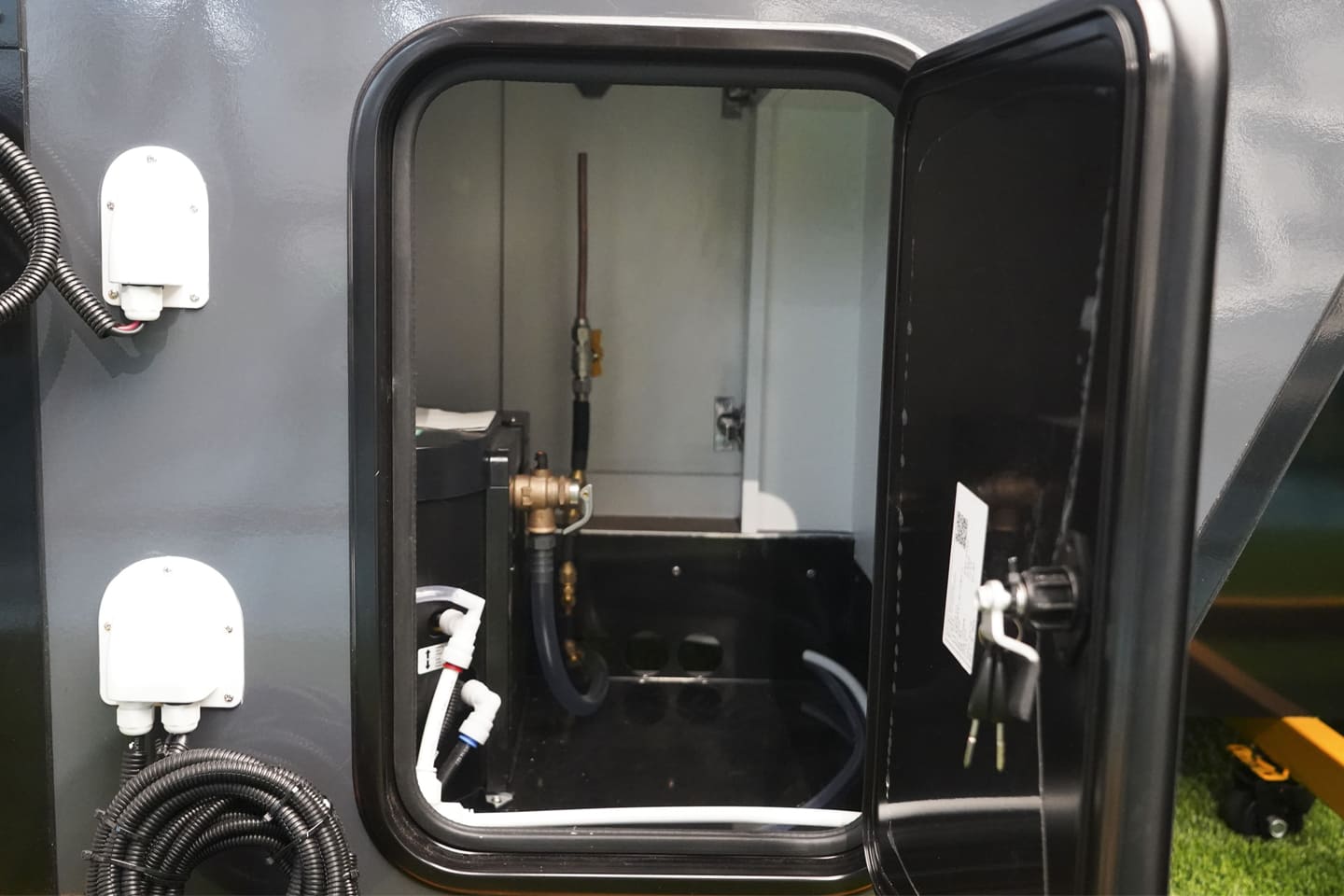

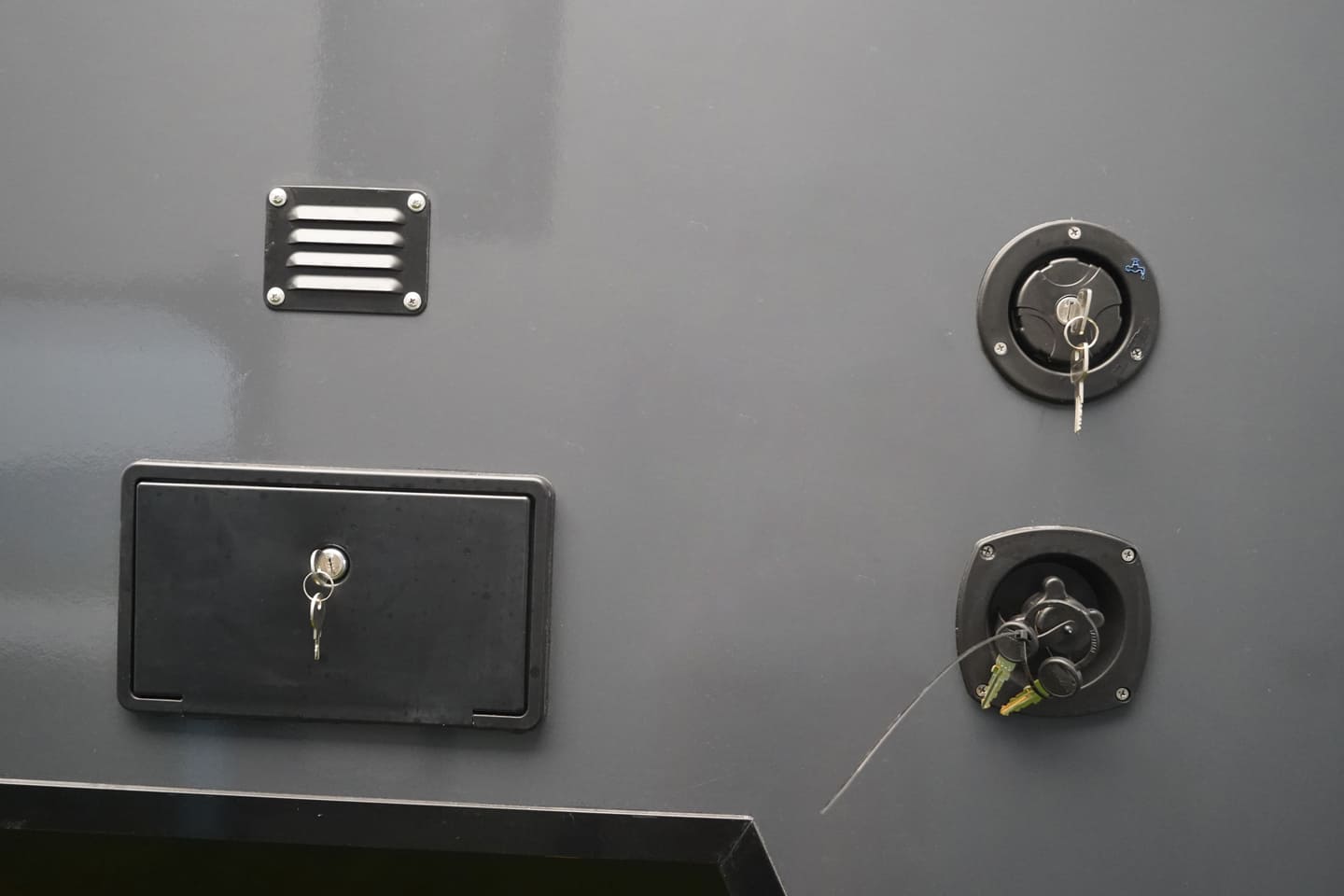

Gravity water inlet
Pressure-reducing water inlet

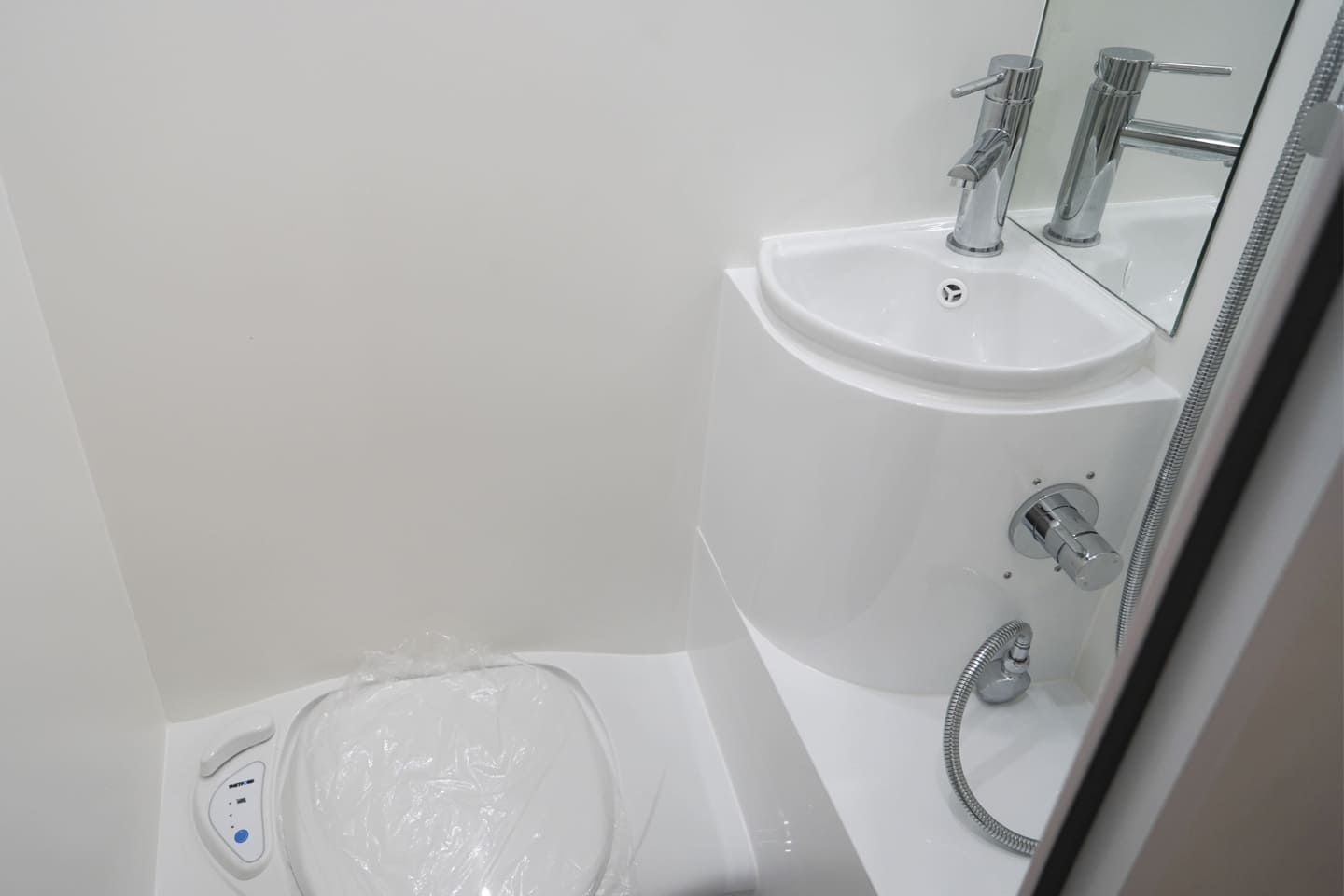

Wet/dry combo bathroom
Adjustable-height showerhead (Water Mark certified)
Sink faucet: hot & cold (Water Mark certified)
External shower box (cold/hot water)

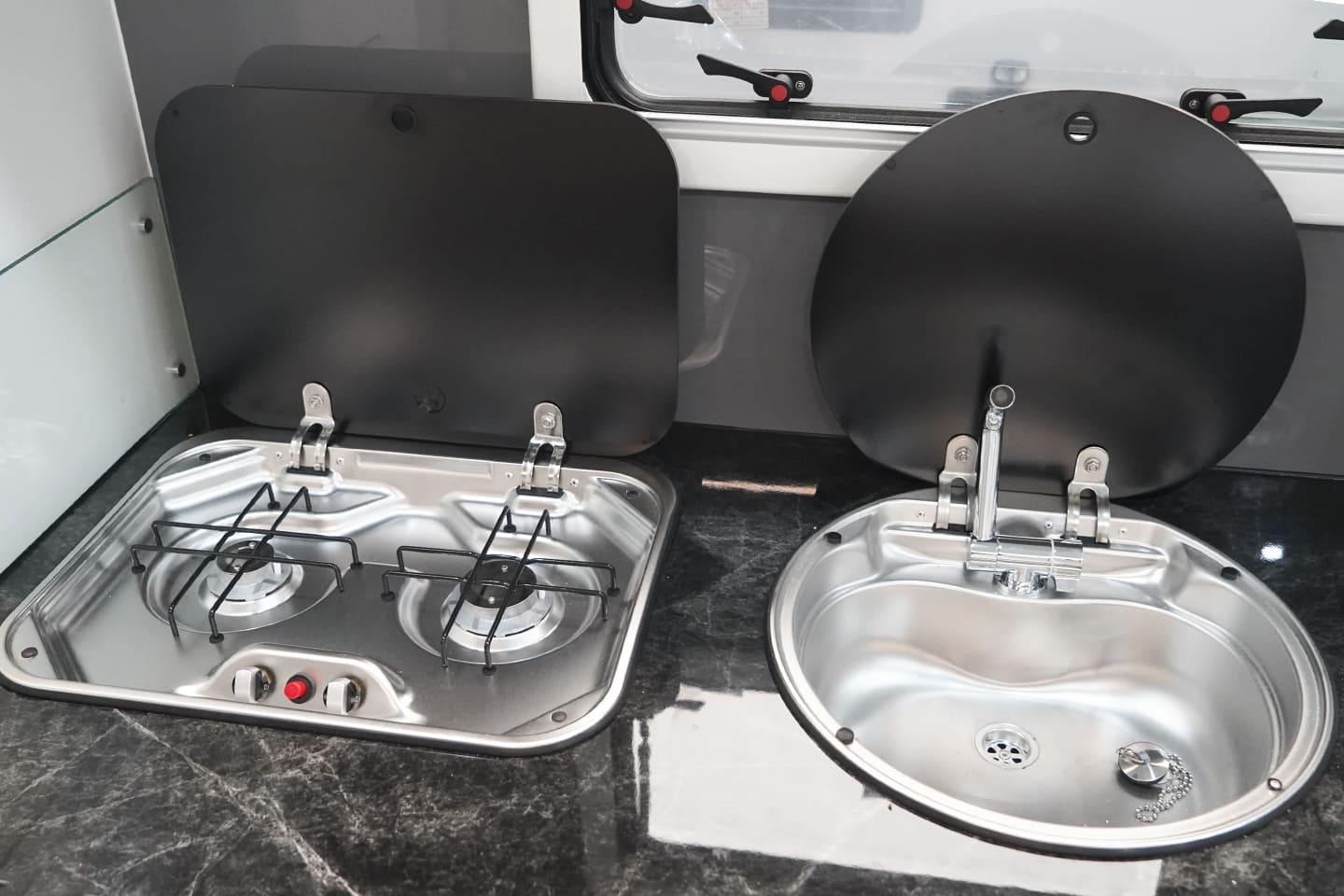

Covered sink basin

Appliances

​​Exterior colors​​:
RAL7001 Silver Gray*1 unit
RAL9016 Gloss White*1 unit (Fiberglass)
​​Interior colors​​:
Matte White (Fiberglass)
PVC flooring: HW-7021G
Sofa: Gray (YJ767-7)*1 unit, Blue (YJ789-20)*1 unit

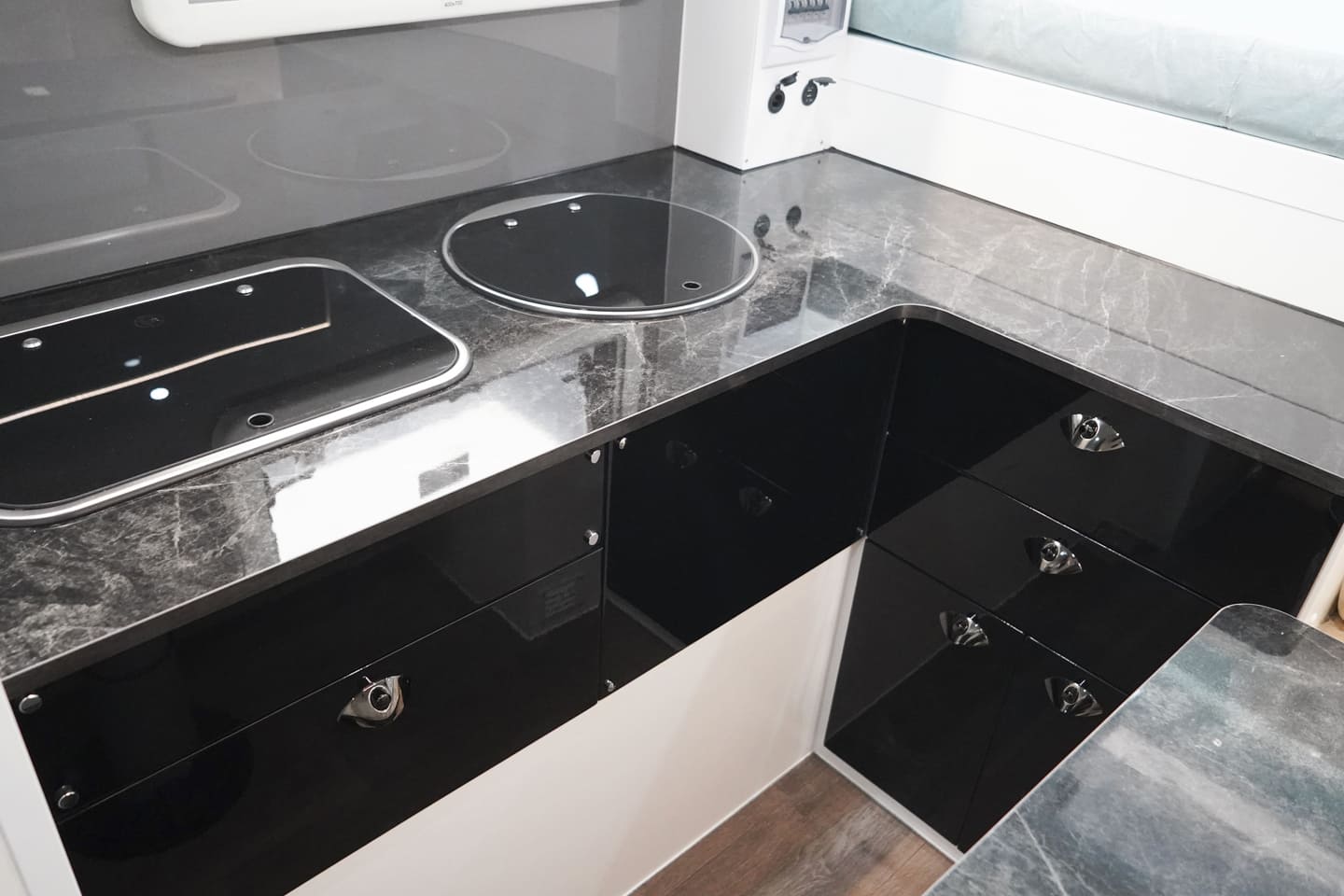

Countertop: RAL9016 Gloss White*1 unit, Black Cloud Stone (33476A)*1 unit
Cabinetry: Matte White (solid wood core)
Cabinet doors: VM-4030A-6HG-01 Silver (MDF)
Door colors: Full White1 unit, Full Black1 unit
​​Optional​​:

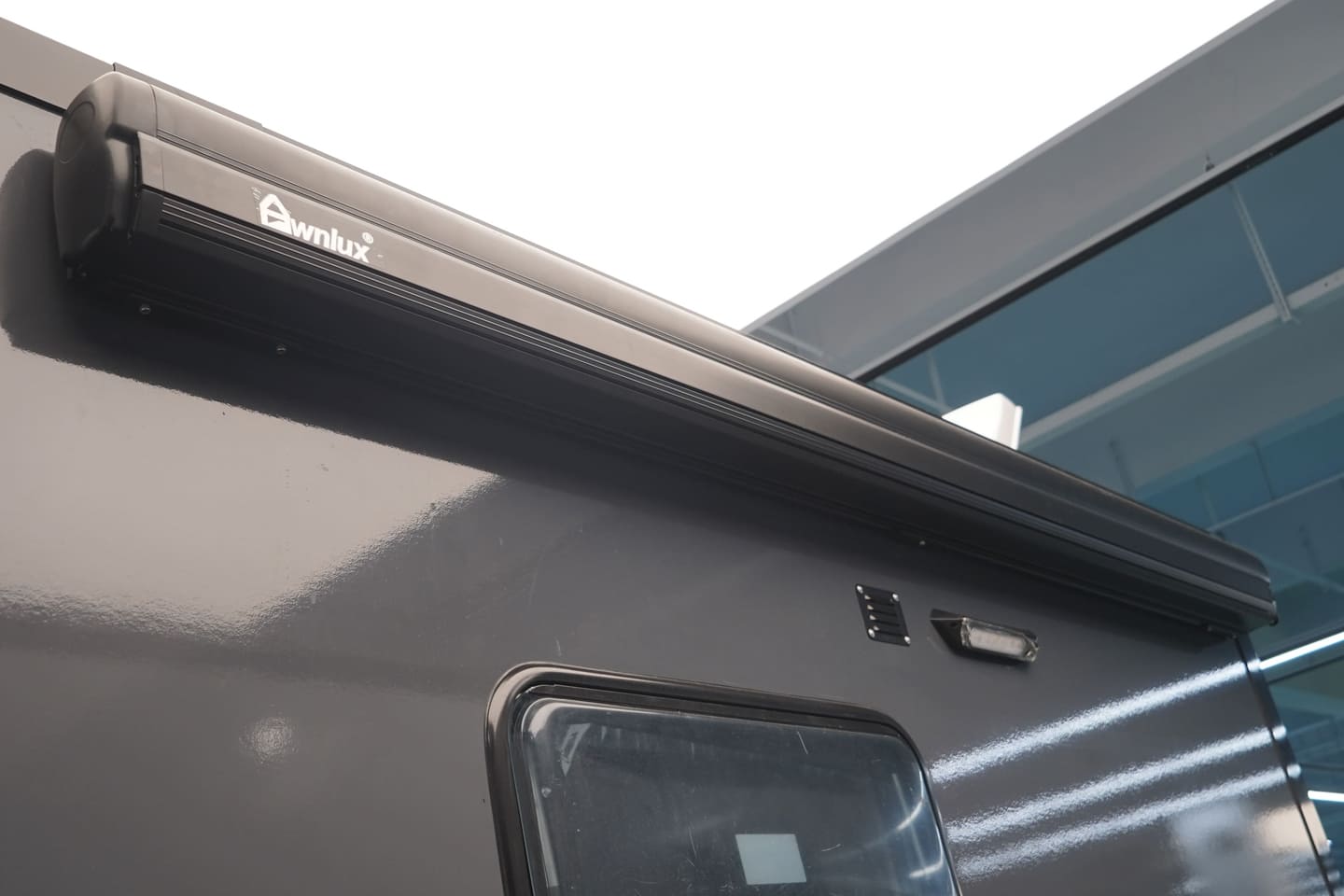

Awning: 2500(L)*2000(W) mm (manual, standard colors)
TV bracket
24″ 12V TV
Digital TV antenna
Entrance step ladder

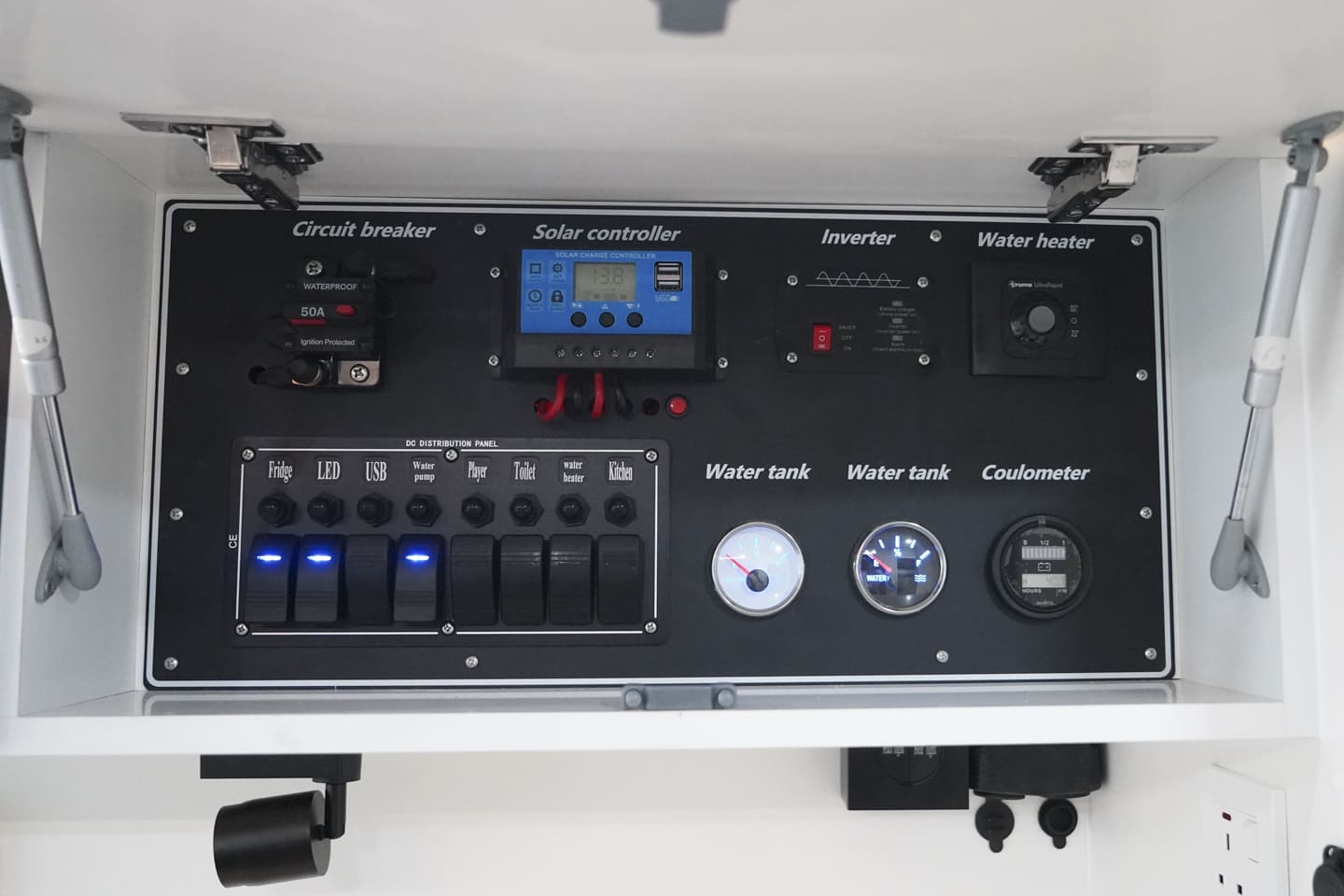

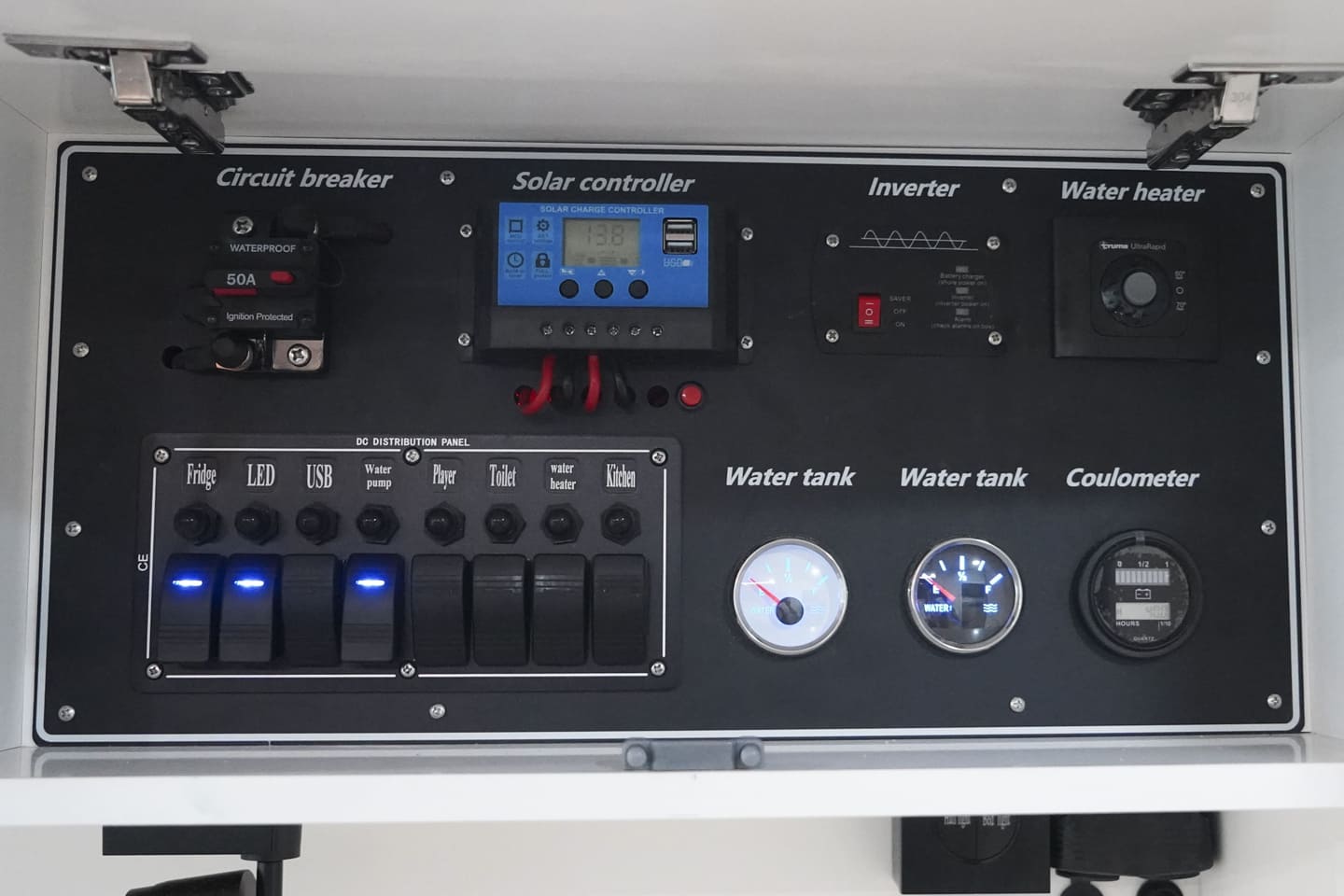

Electrical

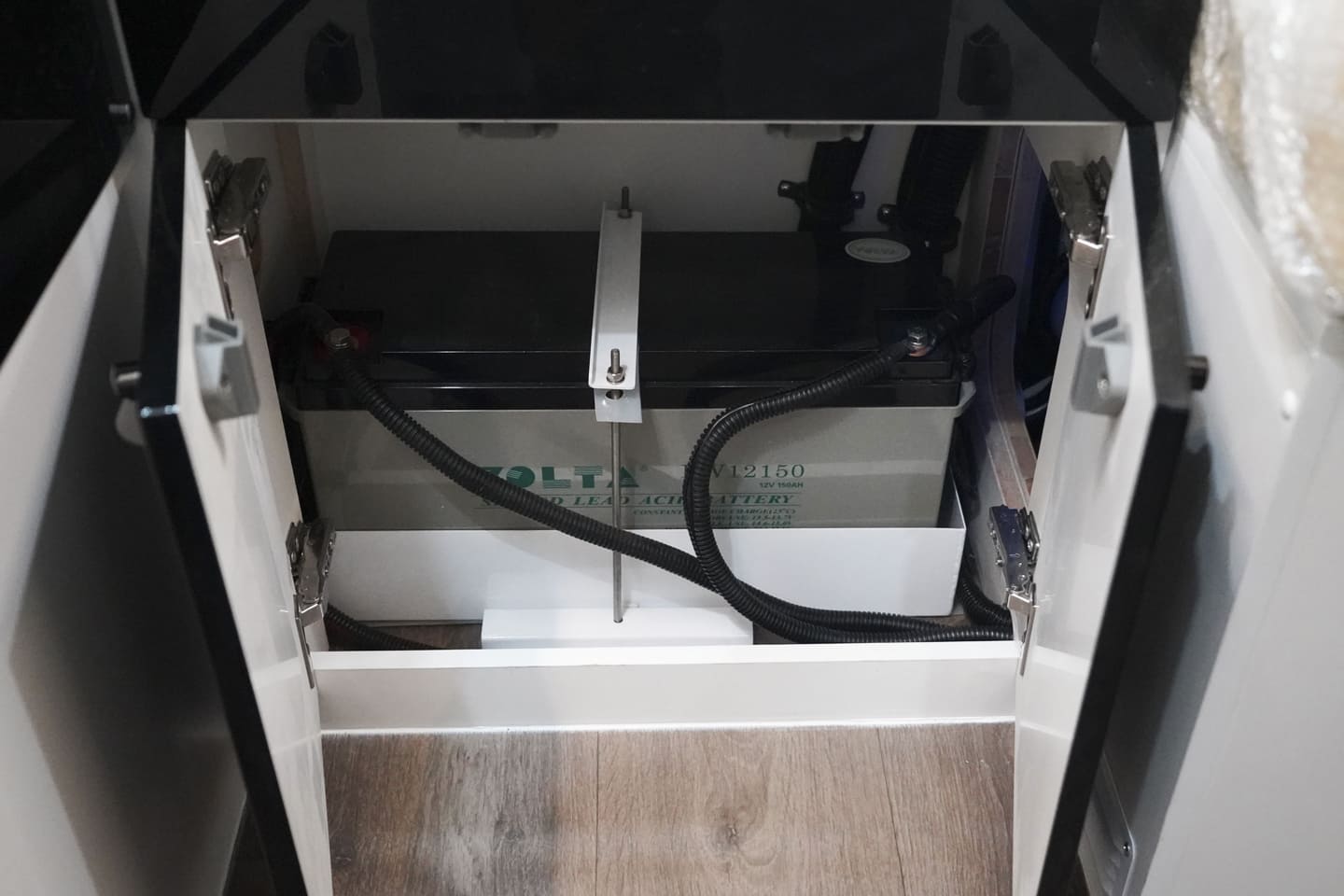

Battery: Maintenance-free 12V 150AH
Inverter: 12V→240V, 2000W sine wave with 0-60A charging
Solar controller: 20A
Power display: Digital battery meter
Water level indicators: Fresh/gray tanks

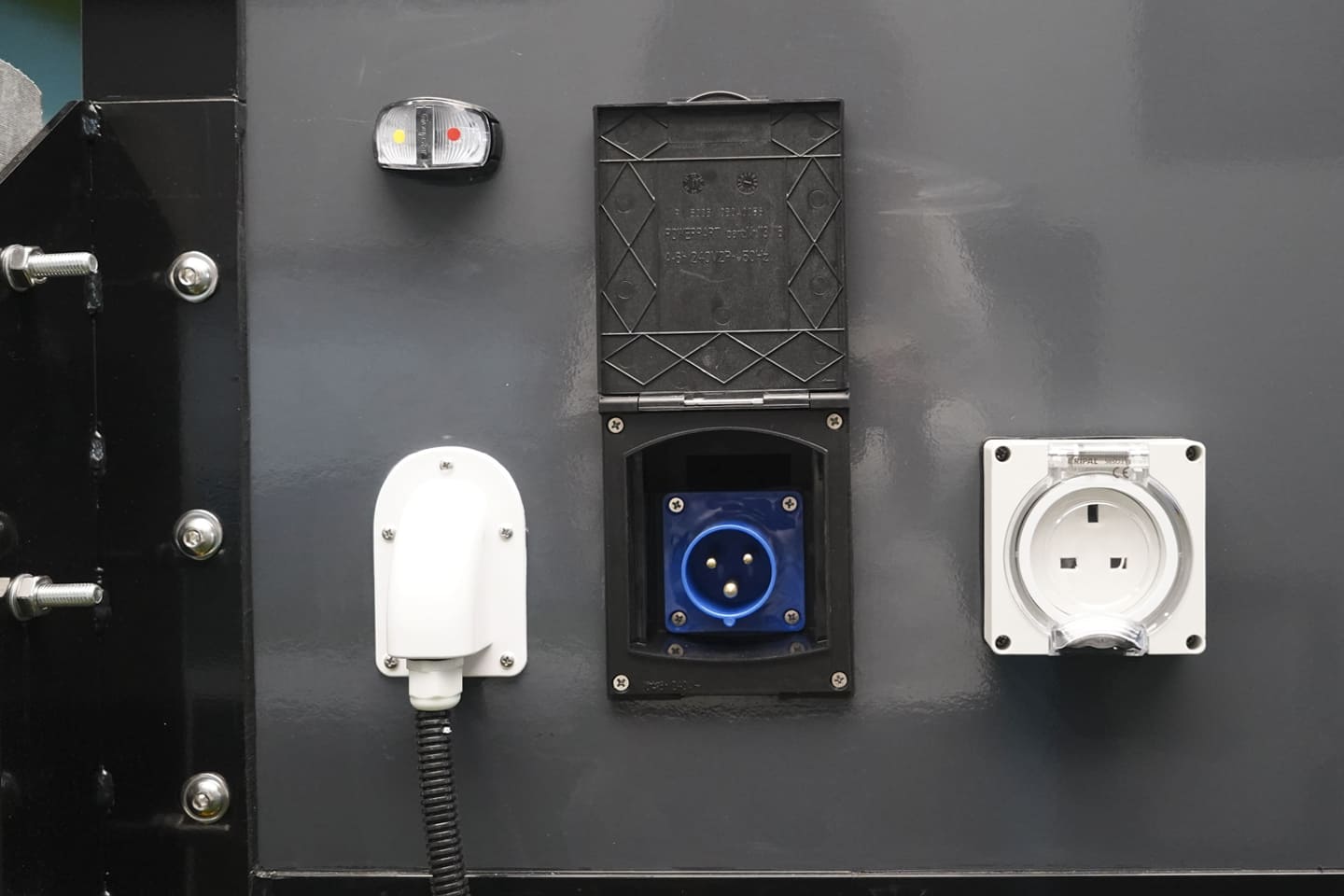

External power inlet: 220-240V 15A
15m charging cable

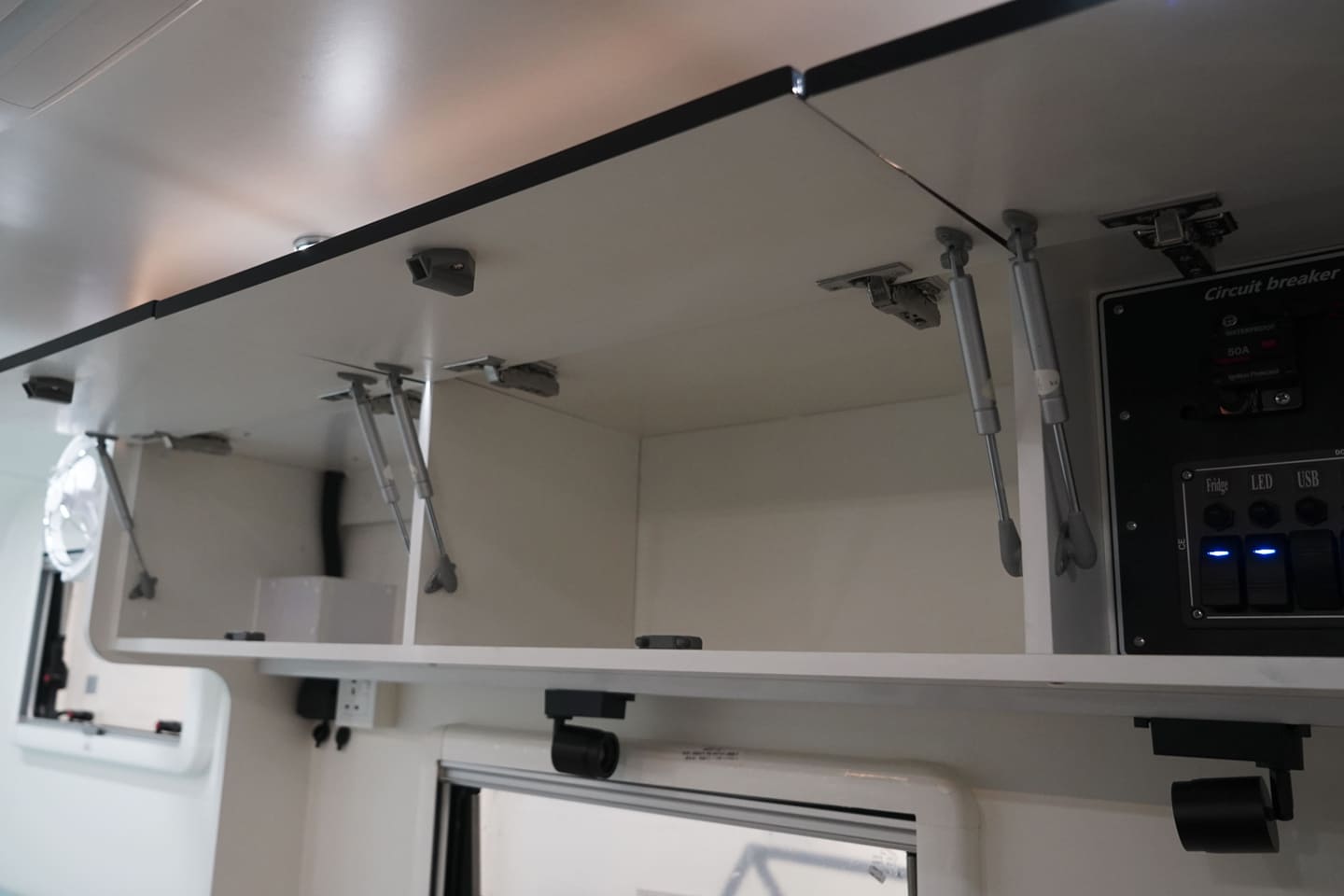

240V circuit breaker
12V circuit breaker (automotive-grade)
Interior 240V outlets: 5
Interior 12V outlets: USB + cigarette lighter
MP5 player
Interior speakers*2
FM radio antenna
Dometic rooftop AC
Bathroom exhaust fan
700 * 500mm skylight with light

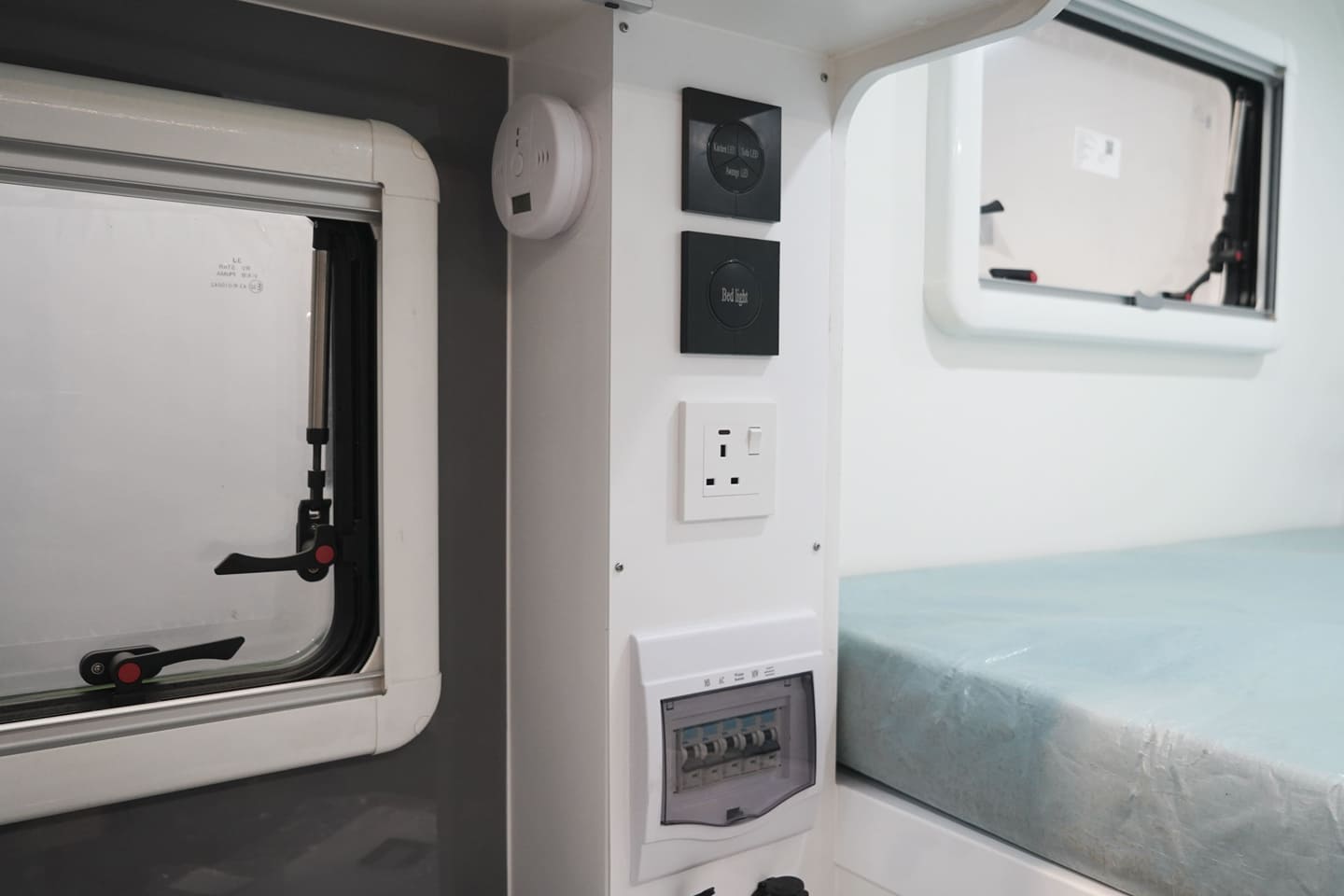

CO detector
Smoke alarm

Exclusive Benefits of the Rugged Cabover Camper-172 for Adventurers

Self-Sufficient Operational Capabilities

Integrated cooking and sanitation systems enable independent operation without external infrastructure

Emergency-ready design supports rapid deployment in remote locations or crisis situations

Intelligent Monitoring & Control

Simplified interface with visual indicators streamlines system oversight and maintenance checks

Pre-configured wiring enables tool-free assembly for immediate operational readiness

Flexible Space Configuration

Modular interior adapts between lodging, workspace, and equipment storage as needed

Universal mounting points accommodate various professional or recreational gear

Advanced Safety Integration

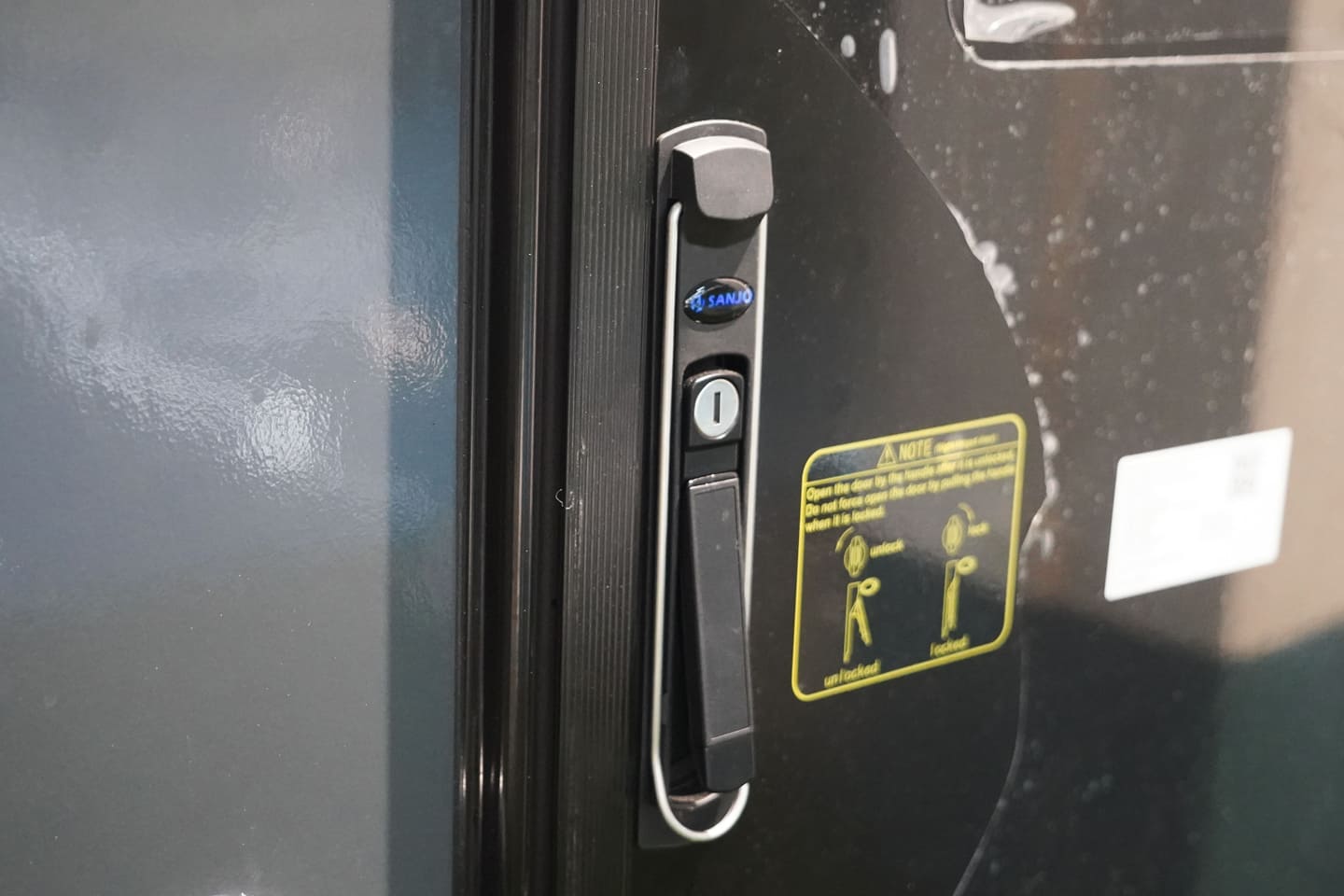

Reinforced security features protect contents during transport and stationary use

Automated emergency systems maintain critical functions during power disruptions

Take A Tour!

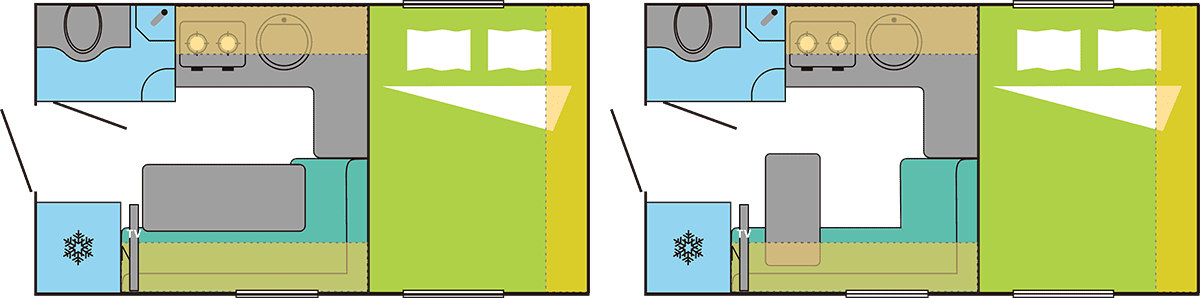

Floor Plan
